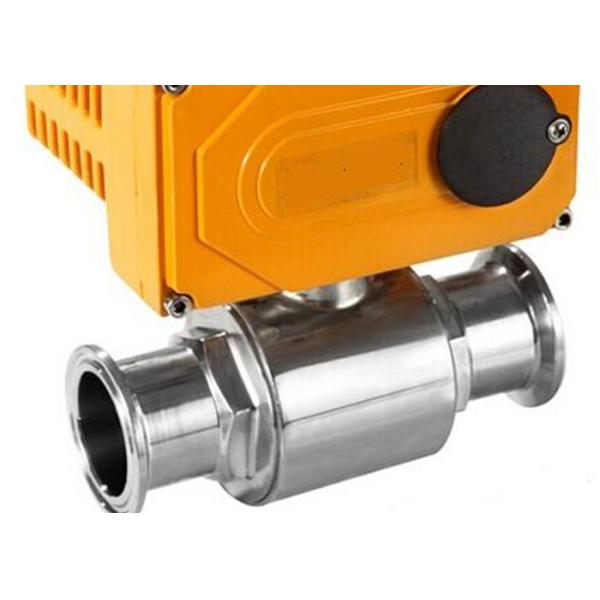

Explosion Proof Hygienic Ball Valves , Pneumatic Operated Ball Valve 3/4" ASME BPE

AISI 304 316L Stainless Steel Pneumatic Sanitary Ball valve 3/4" ASME BPE

Pneumatic actuator

Double acting: Air to open, air to close, air supply failure to keep the current position

Single acting air to open type: Air to open, interrupt air to close, air failure to close

Single acting air to close: Air to close, interrupt air to open, air failure to open

Optional accessory: Reversing solenoid valve, limit switch box, air filter reducing valve, positioner, handle manual, lock up valve

Electrical part can be chose explosion-proof type

Match with 0-90° rotation pneumatic actuator, can be implement the following flow chart:

L-type:

T-type

(Mainly has four kinds of flow directions, please select the sutibale one)

Fitting ends :

BS, DIN, SMS, A270, Weld ends, Male ends and Clamp ends
Working pressure :

* -0.9 to 10 Bar for cast body

* -0.9 to 20 Bar for forged body
Working temperature :

-10oC up to 150oC

Valve line includes, ball, butterfly, check, seat, long stroke, mix proof, PMO, diaphragm and sampling. All valves can be supplied with a variety of actuation and control packages.

Sanitary pump line includes both centrifugal and positive displacement pumps.

Stainless Steel Sanitary Tubing and Tube Fittings Highlights:

Valve line includes, ball, butterfly, check, seat, long stroke, mix proof, PMO, diaphragm and sampling. All valves can be supplied with a variety of actuation and control packages.

Sanitary pump line includes both centrifugal and positive displacement pumps.

Spezilla is an ISO9001 & 3A manufacturer and global supplier of stainless steel sanitary tubings, fittings and valves. Our products are manufactured using high grade raw materials and in compliance with international quality norms for the Food, Dairy, Beverage, Breweries, Cosmetic, Biotech and Pharmaceutical Industries.

Certification: ISO9001, 3A

Materials: 304, 304L, 316L, 1.4301, 1.4307, 1.4404

Standards: 3A, ASTM A249/A269/A270, EN10357, DIN 11850, ISO 2037, SMS 3008, BS4825-1, AS1528.1

Quality and Mechanical Tests: To assure the highest quality standards, our tubing is subjected to extensive testing and inspection programs that meet or exceed ASTM A270/A1016/A1016M test require- ments. Eddy current testing is performed on 100% of the sanitary tube produced.

Annealing: Inline bright annealing to 1900°F (1040° C) min. followed with a rapid quench.

Surface Finishes: Surface finish is 20 μ-in Ra (0.5 μm) ID maximum, 30 μ-in Ra (0.8 μm) OD maximum surface roughness measured per ASME/ANSI B46.1 with the profilo- meter reading at 90 degrees to the lay. Other finishes available upon request.

Packaging: As a final step to ensure purity standards, each tube is packaged using 2 mil poly sleeving and both ends are sealed using air tight end caps, wood boxes and all export requirements can be provided.

Marking: Bright annealed tubing is line–stenciled with OD, wall, ASTM specifications, size, grade, heat number, production date and time. OD polished tube is marked on one end of each tube with a removable label stating ASTM specification, manufacturer, grade and heat number. Continuous line stencil available on request.


Industry We Serve: Our superior quality products find application in various industries such as: Food & Dairy / Beverage / Brewery, Winery & Drinks / Pharmaceutical & Biotech / Photovoltaics, Semiconductors etc.

Our Export Market: USA / Canada / UK / Belgium / Spain / France / Poland / Bulgaria / Azerbaijan / Czech Republic / Mexico / Chile / Colombia / Costa Rica / Uruguay / Argentina / Paraguay / Ecuador / Peru / Venezuela / Thailand / Indonesia / Singapore / Malaysia etc.
