1L Supercritical Fluid Extraction cbd
TOPTION Supercritical Fluid Extraction is a kind of high and new separation technology which developed nearly 10 years. It has difference with conventional solvent extraction which use
organic solvent, the new one choose a substance called
Supercritical Fluid (SF) as extracting agent instead of organic
solvent.
The SFE technology is mainly about Separation, the solution will touch with extracted materials under High
Pressure& Suitable Temperature, the Solutes would be diffused into
the solution, then change the operation Conditions, to make the
Solutes separate out.

- manufacturer of supercritical co2 extraction plant
Technical parameters of botanical and cbd extracts supercritical
fluid extraction equipment:
Model | Extraction capacity | Pressure | Temperature range | Combining form |
TOP120-50-0.5 | 0.5L | 500bar | RT-75℃ | One extracting pot-two separating pot circulation mode. |
TOP121-50-0.5 | 0.5L | 500bar | RT-75℃ | One extracting pot-two separating pot one rectifying column
circulation mode. |
TOP120-50-01 | 1L | 500bar | RT-75℃ | One extracting pot-two separating pot circulation mode. |
TOP121-50-01 | 1L | 500bar | RT-75℃ | One extracting pot-two separating pot one rectifying column
circulation mode. |

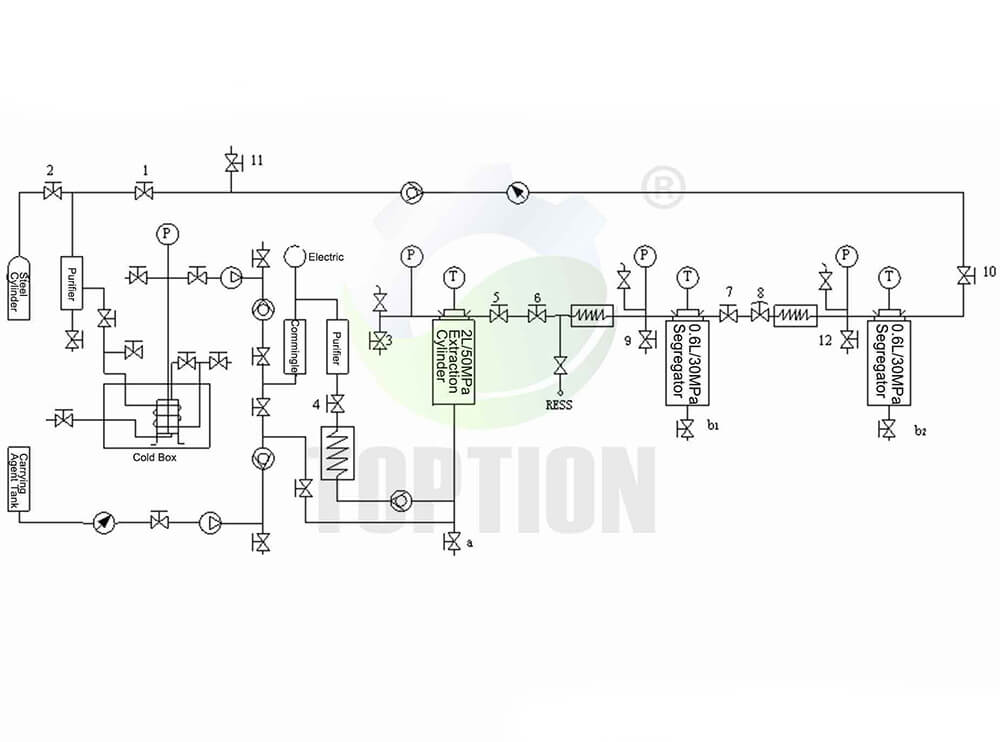

- design of supercritical fluid extraction equipment
Your benefits from TOPTION brand supercritical fluid extraction
equipment:
1.The extractor is equipped with a quick opening, the quick opening
mechanism adopts special design (the technology introduced from
US), and the switch kettle is portable and fast.

- co2 extraction process equipemnt

- Quick opening kettle design of supercritical co2 extraction device
2. The extractor and separator are made of stainless steel integral forgings with high strength and long life.
3. Unique cylinder design, which increases the effective contact
with the material in the extractor, overcomes the “bypass”
phenomenon of CO2, improves the extraction efficiency and yield, and reduces the
extraction time.
4. The heat exchange system is equipped with electric heating
device. The temperature can be set arbitrarily and the heating is stable and uniform.
5. Adopt the refrigeration unit of joint venture technology, the refrigeration effect is good, the appearance is beautiful.
6. Equipment has reliable security: in addition to the pressure device has enough safety margin, the
extractor, separator, evaporator are equipped with safety relief
valve, and CO2 pump discharge has pressure limited protection, the whole units will stop running while over pressure.
7. Automatic Control System operation is simple: extraction and separation pressure, heating
and cooling temperature, CO2 flow can be determined by process.
8. Computer centralized control, 17 inches color LCD touch screen
display and control, high speed, high performance microprocessor, cooperate with the
company self-developed software can realize multi-channel signals
at the same time of test, record, display, alarm and control
output, and has USB interface, can be inserted U disk backup
history data, or connect printer to print history curve and data.
(This function is optional).
9. Use frequency converter to adjust CO2 flow, which is convenient
for process and energy saving.
Supercritical fluid extraction equipment workshop show:
