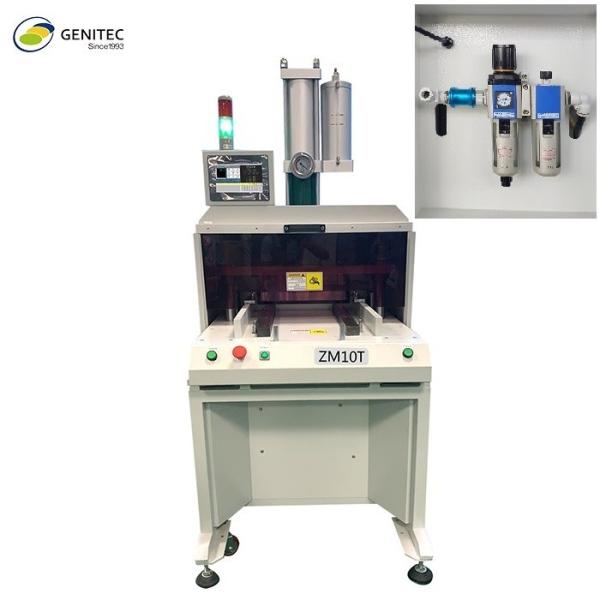

Four Axis 100mm/S PCB Punching Machine With Single Transferring
Automatic Push-Pull In And Out Cutting PCB Punching Machine For PCB Cutting ZM10T
PCB Punching Machine Feature:
1. High Efficiency. FPCs can be divided into 6 to 8 pieces in one minute.
2. The surface of the product is flat and uniform.
3. Low noise, no dust, thus reducing environment pollution.
4. Low Energy, the main power of consumption is compressed air.
5. Low labor intensity for employee.
6. Adopt the lower die automatic entry and exit slitting method, which is protected by both grating and safety door. The operator is very safe to operate it.
PCB Punching Machine Specification
| 1. Machine Exterior Sepecifications | Machine Name | PCB Punching Machine |
| Model | ZM10T | |
| Outsize | 830*730*2100MM | |
| Shape | Vertical | |
| Weight | 530KG | |
| Color | Computer White | |
| 2. PCB Punching Machine Supply Requirements | Power Supply | AC220V 200W |
| Enviroment Required | Clean and dry environment ,Avoid moisture or high temperature environment | |
| Working Pressure/Pipe Dia. | >0.6MP /6mm | |
| Minimum distance of part from cutting position | ≥＝0.5mm | |
| Max.Cutting Length | 300*360mm / 300*360mm / 350*600mm(Can customized larger size) | |
| FPC Cutting Position | Don’t allow components to cross above the cutting position | |
| Position Hole Required | FPC has4 holes at least and extra one foolproof hole | |
| Max.height of the FPC Components | Obverse max.height is: 20mm front max.height is 35mm | |
| 3. PCB Punching Machine Software Part | PLC | Mitsubishi/Zhongyan PLC |
| Paramenters Setting | Can set the punch cut times through touch screen,and the maintenance time of the cutter time etc. | |
| Storage Module | Can store 50 sets of programs | |
| Operating System | Chinese and English operation interface | |
| Touch Screen | WEINVIEW 7inch Touch Screen | |
| Fiber Optic Sensor | Daochuan Sensor |
| 4.Cu 4. Cutter mould tter mould | Blade Metal Properties | High-speed Steel Imported from Japan |
| the Mould Type | Blade mould,precision steel mould complex mould | |
| the Blade Angle | Design it according to product’s cutting point | |
| the Service Life of the Mould | 5000000 Times(or One year warranty) | |
| Making the Mould Required Material | Product Gerbar or CAD and more than two pieces samples | |
| Change the mould time and personnel requirement | General technician within 10 minutes | |
| Mould making cycle | 7 days After receiving products and drawing | |
| Cutting Precision | 0.05mm | |
| 5. Other FunctionsFunctions | Mis-operation protection | Safety light curtain,Sensor,and software Triple protection.Start with both hands |
| Spare part surface treatment | the Anode , Electroplating | |
| Punch Cut Method | Adopt high-speed pressure cylinder punch cut,supercharged booster-type | |
| Safety protection | Emergency Stop | |
| Power off and air off function | has | |
| Self-test function | Boot time monitoring,Production capacity monitoring,machine failure information and automatic rejection system | |
| Working Method | Automatic push-pull in and out cutting | |
| Scope of application | Suitable for cutting FPC,PBC,Aluminum boards,Copper boards |
|
