Brand Name: | EcooGraphix |
Model Number: | ECOO-ZP 480/ 680 |
Certification: | ISO9000, CE |
Place of Origin: | China |
MOQ: | 1 SET |
Price: | Negotiable |
Payment Terms: | L/C, T/T |
Supply Ability: | 500 Sets/Year |
Delivery Time: | 45 Days |
Packaging Details: | Standard Export Packing |
Machine Type: | Rotary Offset Printing Machine |
Max. Printing Speed: | 180m/min |
Printing Repeat Length: | 380-690mm; 430-630mm |
Combine with Functions: | Flexo, Gravure, Cold Stamping, Hot Stamping, etc. |
Suitable for Variable Substrates: | Self-Adhesive Paper, Paper and Unsupported Film |
Max. Web Width: | 480mm; 680mm |
Max. Printing Width: | 460mm; 660mm |
Company Info. |
Hangzhou Ecoographix Digital Technology Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |

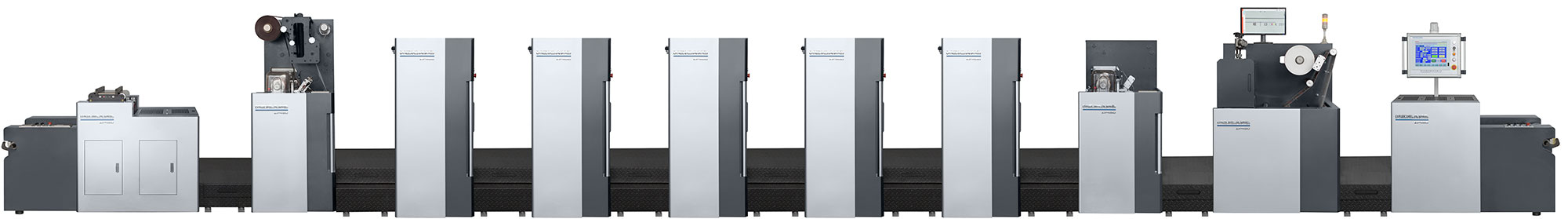

480 Or 680mm Web Width Automatic Rotary Offset Printing Machine
• ∷ • ∷ • ∷ • ∷ • ∷ Features ∷ • ∷ • ∷ • ∷ • ∷ •
Automatic Rotary Offset Printing Machine | ||
Model | ECOO-ZP 480 | ECOO-ZP 680 |
Max. Printing speed | 180m/min | 180m/min |
Printing color | 4-12 colors | 4-12 colors |
Max. Web width | 480mm | 680mm |
Max. Printing width | 460mm | 660mm |
Max. Unwinding diameter | 1000mm | 1000mm |
Max. Rewinding diameter | 1000mm | 1000mm |
Printing length | 380-690mm | 430-630mm |
Dimensions(L*W*H) | 15.2m * 3.7m * 2.1m | |
Unwinder + Flexo unit with cold stamping + 5 Offset units + Flexo(varnishing) + Die-cutting unit + Rewinder |
• ∷ • ∷ • ∷ • ∷ • ∷ Details ∷ • ∷ • ∷ • ∷ • ∷ •

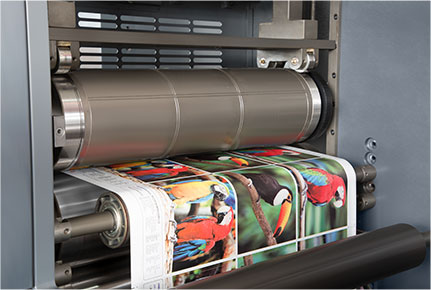

Heavy Offset Printing Unit
High quality heavy offset printing unit with well-designed inking
system which can transfer ink fast & evenly, avoids gear mark and
ghost image effectively. The printing quality can be highly
improved.
Variable Printing Sleeve
When the printing job with different repeat length, just change
both plate and blanket sleeve accordingly.the sleeve changing is
very fast and efficient.
Automatic Ink Control System
One-button setting, ink control is automatically, because of ink
supply automation and precision, it improves the printing
efficiency & quality, and reduces wastage.
Note:*= Options
*Flexo Unit
In order to print more shining, the flexo unit can do spot
varnishing or full varnishing or drip off, can be installed
according to user's requirement.
*Cold Stamping Unit
Cold stamping with registration and hologram transfer, can be
installed according to user's requirement.
*Die-cutting Unit
Adopts magnetic roller, the printing and die-cutting can be
finished at one time. It can be installed according to user's
requirement.
Q2: Where is your factory ?
A: Our CTP Processor machine factory is in Shanghai, you are warmly
welcome to visit our factory!
Q3: How long is the lead time ?
A: The lead time is normally 30 days. We can accelerate for emergency
cases.
Q4: Is there any certification for your machine ?
A: Yes, all our machines have been certified by SGS and CE.
Q5: How long is the warranty period ?
A: EcooGraphix guarantees 1 year of warranty for laser head and spare
parts.
Q6: What is your normal payment term ?
A: Normally, 30% TT deposit, 70% before shipping, or LC at sight.
![]() |
