Internal Voltage Resistance Tester Li Ion Battery Tester Battery Assembly Line

Categories Battery Testing Lab
Brand Name: GELON
Model Number: GN-BK-300A
Certification: CE
Place of Origin: Guangdong, China
MOQ: 1 set
Price: USD 560-910 set
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 sets per month
Delivery Time: 15-20 works day
Packaging Details: Standard export package
Product name: Internal Voltage Resistance Tester
Ac current frequency: 1KHZ±0.1KHZ
Calibration: Potentiometer calibration(stand box additional)
Test alarming: internal resistance pass alarmor fail alarm
Holder: Air plug,can holder box or testing line
voltage: AC220V,50HZ,Power≤20W
Size(W×D×H): 340×380×110 mm
Working temperature: temperature:20℃±5℃,Humidity≤85%
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

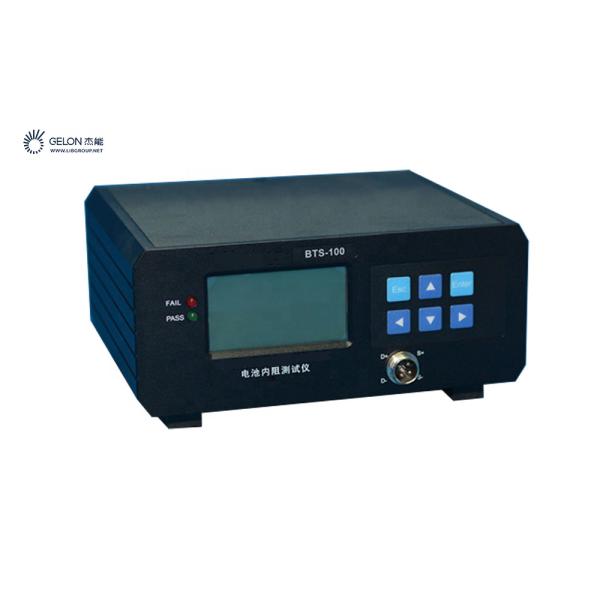

Internal Voltage Resistance Tester Li Ion Battery Tester Battery Assembly Line

Gelon Lithium Ion Battery Tester Internal Voltage Resistance Tester Battery Research Battery Assembly Line


Description:

1) simplicity of operator

2) practical and reliable

3) high performance

4) high quality

5) lower price


Index:

Technicle parameters
Type of testerAc internal resistance tester
Way of testerfour-line measurement
Ac current frequency1KHZ±0.1KHZ
VoltageVoltage: Two selectable ranges
DC0~5.000V,resolution 1 mV,Accuracy±(0.2%rdg+5dgt).
DC5.00v~20.00V, resolution 10mV,Accuracy±(0.2%rdg+5dgt)
internal resistanceBattery internal resistance: Two selectable ranges
Low range: 3mΩ~300.0mΩCurrent 10mA±0.3%rdg+5dgt.
High range: 300mΩ~3000mΩCurent 1mA±0.3%rdg+5dgt.
CalibrationPotentiometer calibration(stand box additional)
Test alarminginternal resistancepass alarmor fail alarm
HolderAir plug,can holder box or testing line
Specs
woltageAC220V,50HZ,Power≤20W
Size(W×D×H)340×380×110 mm
Working temperaturetemperature:20℃±5℃,Humidity≤85%





What we supply:
1. Full set of lithium battery materials, including :
LiFePO4, LiMn2O4, LTO, LiNiMnCoO2(NMC), LiCoO2, Graphite(MCMB)and Other Cathode&Anode Battery Materials; Aluminum foil, Copper foils, Battery separator,etc.

2. Full set of lithium battery equipment, for example:
mixing machine --coating machine--vacuum oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3. Full set of lithium battery technology.
We can design the laboratory and production line according to customer's request.
